MuleSoft Interview Questions

MuleSoft operates on the AnyPoint Connectivity Model, which helps connect any existing SaaS-based applications or a set of APIs through a single API interface. The architecture is service-oriented, providing the flexibility to access all required applications through this integration.

MuleSoft owns the Programmable Web portal, widely used by developers to build web, mobile, and other user applications. So Mulesoft is one of the most widely used integration platforms for business needs.

Mule ESB allows development teams to connect and access data flexibly and easily exchange data. It helps enable integrations between application platforms despite different technologies and protocols used by the applications (such as HTTP, SaaS, Payment Gateways, Web services, JMS).

ESB can be implemented and deployed anywhere in the application network. It triggers events in real time or in batch, providing global connectivity.

• You can connect any number of applications within a single environment, with no restrictions on app communication.
• Mule ESB manages interactions between multiple applications, without restricting those applications to the same VM or to other VMs. Even though the application is running in different VMs, they can interact with each other. Its flexibility with the transportation protocol makes interactions easy to handle.
• Though there are many ESBs on the market, MuleSoft offers flexible and reliable services.
• MuleSoft offers high accessibility and adaptability through vendor-neutral methods. You can easily plug and play any application through any vendor.

Mule ESB has the following key features:

• Mule ESB has a simple drag-and-drop graphical design.
• Visual data mapping and transformation are possible with Mule ESB.
• Hundreds of prebuilt connectors are available to users.
• Monitoring and management are centralized.
• It has a strong security enforcement capability for the company.
• API management is a feature that it offers.
• For cloud/on-premise connectivity, there is a secure data gateway.
• It offers a service registry that publishes and registers all services exposed by the ESB.
• A web-based management console gives users access to the system.
• Using a service flow analyzer enables quick debugging.

We can make connectors a reusable component by defining them as common resources and exposing them to all applications deployed under the same domain; these resources are known as shared resources.

These shared resources need to be defined within the Mule Domain Project and referenced by each project that uses them.

The message format of a web service can be XML, JSON, or any other format, as long as the other programs can understand and communicate with it.

Any web service has a server-client relationship. Web services can be synchronous or asynchronous. A web service can serve multiple clients simultaneously.

ESB implementation is not suitable for all projects. A proper analysis should be conducted to determine whether the use of ESB will truly benefit the project.

Some of the points to be considered while analyzing the need for ESB are as follows:

• Suppose the project requires integrating 3 or more applications/services. If the need is to communicate between two applications, using point-to-point integration would suffice.
• If the project is scaled in the future, we may need to interact with more services. Not all projects need this, as they may not perform a very big task.
• If the project needs message routing capabilities, such as forking and aggregating message flows. Not all projects require such features.
• It's better to run simple POCs that integrate small parts to evaluate the benefits.
• Most enterprise ESB solutions can be expensive.

Creating a SOAP Service:

• Define a WSDL contract
• Add SOAPkit for the SOAP module
• Configure the flow with router endpoints
• Implement each operation flow with backend logic
• Implement dataweave transformations to map request/response to the WSDL schema.

Consuming a SOAP Service in Mule 4:

We can use the Web Service Consumer or the CXF component in our Mule flow to access/consume the SOAP service.

MuleSoft is a secure, robust, and highly scalable communication network that enables self-service for applications. It helps organizations integrate applications, data, and multiple devices in a flexible environment.

It is a hybrid application integration platform that includes ESB, unified solutions for API management, iPaaS, application design, and publishing.

MuleSoft supports multiple software and tools, including the following:

• API Designer - Design Center
• Any Point Studio - Any Point Design Center
• API Manager - Any Point Management Center
• API Analytics - Any Point Management Center
• API Portal - Exchange
• MCQs- Runtime Services
• Mule ESB - Mule Runtime Engine
• AnyPoint Connectors
• CloudHub - Hybrid Cloud
• Mule Enterprise Management.

An API (Application Programming Interface) is a software interface that allows two different applications to interact on a single platform.

• APIs provide several benefits.
• APIs have evolved over time and now adhere to standards, such as HTTP and REST.
• APIs are developer-friendly, easy to use, and broadly acceptable.
• APIs are mostly used as products rather than as code. They are specifically designed for a particular audience, such as application developers and Mobile App developers.
• Every API comes with detailed documentation with version-specific information and upgrade details.
• APIs are highly secure application interfaces that allow you to operate within a robust environment.
• APIs, similar to any software product, have their own SDLC (software development lifecycle).

REST is a client-server architecture, which means each unique URL represents an object or resource.

Any REST API developed uses HTTP methods explicitly and consistently with the protocol definition.

• This basic REST design principle establishes a one-to-one mapping between create, read, update, and delete (CRUD) operations and HTTP methods. According to this mapping:
• To create a resource on the server, use POST.
• To retrieve a resource, use GET.
• To change or update a resource, use the PUT method.
• To remove or delete a resource, use DELETE.

• RAML is similar to WSDL; it includes endpoint URLs, request/response schemas, HTTP methods, and query and URI parameters.
• RAML helps the client (a consumer of the service) understand what the service is, which operations can be invoked, and how to invoke them.
• RAML helps the developer in creating the initial structure of this API. RAML can also be used for documentation purposes.

Message sources in Mule are usually AnyPoint Connectors, elements that provide connectivity to a specific external source, either via a standard protocol (such as HTTP, FTP, or SMTP) or a third-party API (such as Salesforce.com, X (Formerly Twitter), or MongoDB).

ESB provides the middleware and interfaces that allow businesses to connect their applications without writing code.

JMS provides messaging capabilities and facilitates communication between modules/applications.

Mule is lightweight but highly scalable, allowing you to start small and connect more applications over time.

The ESB manages all interactions between applications and components transparently, whether they reside in the same virtual machine or across the Internet, regardless of the underlying transport protocol.

Several commercial ESB implementations offer limited functionality or are built on top of an existing application or messaging server, locking you into a specific vendor.

Mule is vendor-neutral, so implementations from different vendors can plug into it. You are never locked into a specific vendor when you use Mule.

Mule messages are similar to any other SOAP JMS message; they also contain properties, headers, and multiple names attached to them. The main content of the message is called Payload.

The auto-delete value for this feature is a Boolean by default, meaning its inbound endpoint will automatically delete the file from the source directory.

If the source directory file does not need to be auto-deleted, set the value to false.

Mule service is the set of Mule entities required to support the processing of requests in an organized manner. This service is defined by a configuration that specifies the elements across service layers.

It mobilizes the request, which is open to receiving a particular request. It depends on the service layer's input channels whether a service can be accessible from outside in a public ESB.

The transport layer gets configured with connectors, endpoints, and transformers.  This layer is also responsible for the message adapter, which extracts all information from the request, including data, metadata, headers, and attachments. It also stores the information available in it.

JDBC adaptor configuration is not a complex task for those with experience connecting to a DB. You need a data source to be connected and configured with a database.

Also, if your DB has secure access, then you need to create a security authentication program.

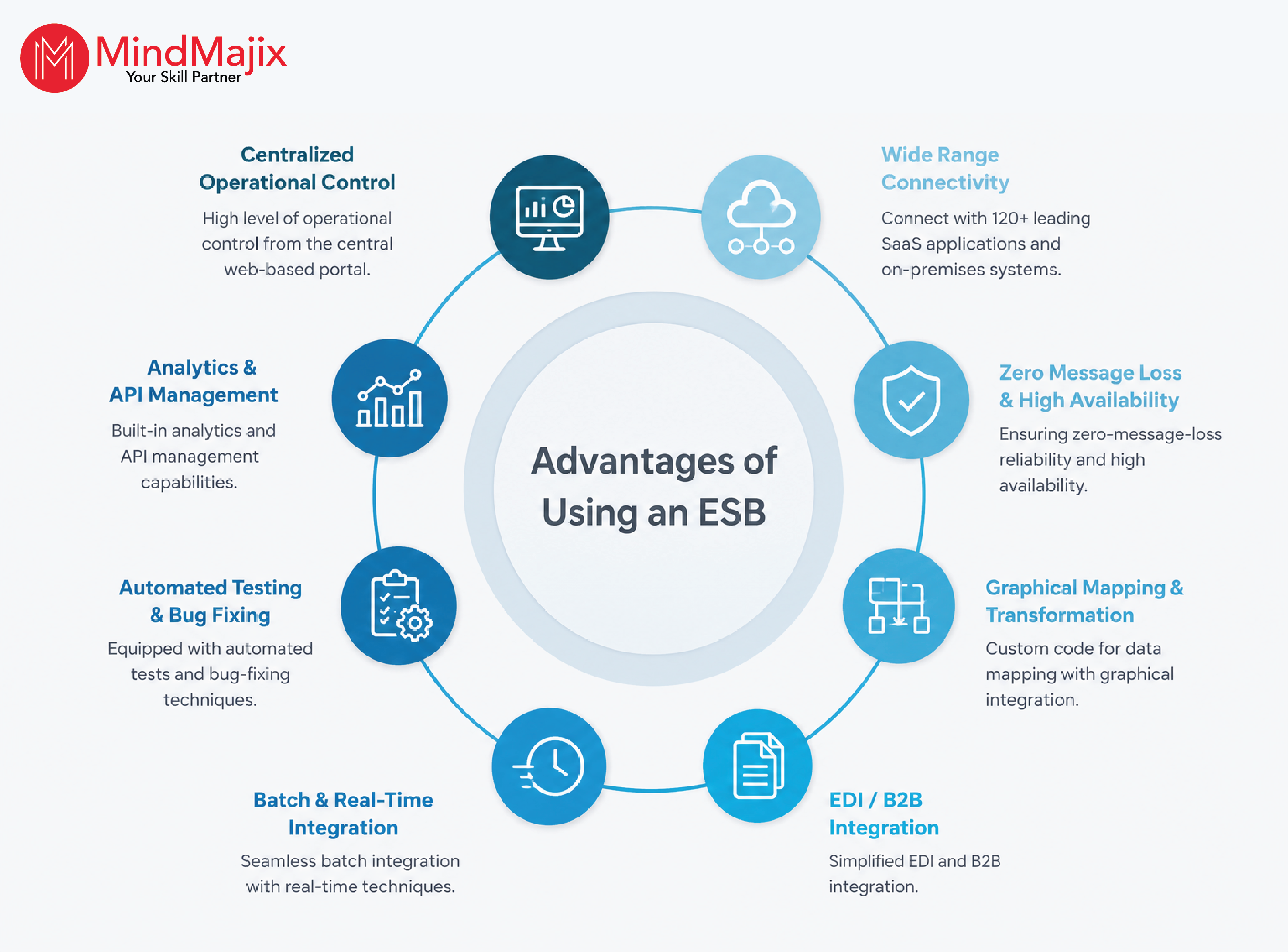

• MuleSoft is very lightweight but highly scalable.
• It allows you to connect to a wide range of applications so that you can expand over time.
• ESB ensures that communication remains uninterrupted and consistent across applications.
• It allows you to build and maintain communication between applications even when they use the same protocols on a virtual machine.
• It can integrate with and connect to a wide range of application networks.
• POJO integration support to connect other components in the network.
• You can use existing components without writing MuleSoft-specific code.

MuleSoft AnyPoint is a unified integration platform that takes a comprehensive approach to API design and implementation. MuleSoft has around 300 databases, a SaaS platform, storage resources, and network service connections.

From designing and deploying to sharing the API lifecycle in MuleSoft, everything is managed by the RESTful API Modeling Language (RAML). The information needed to describe RESTful APIs is best expressed in RAML. It's similar to WSDL (Web Services Description Language). Request/response schema, endpoint URL, URI parameters, HTTP methods, and query parameters are all included in RAML.

In MuleSoft, caching is the practice of storing and reusing frequently accessed data. The scope of Cache is used to reduce the processing load on MuleSoft and improve message processing speed within a flow.

Using the Cache scope or Object Store, you can implement caching in MuleSoft. Internally, the cache scope uses the Object Store for data storage. Both the cache scope and Object store have their particular use cases and are used effectively when required.

• Over VM endpoints, try using flow references.
• Connectors should ideally employ connection pooling.
• Transforms can be done with DataWeave.
• In apps, try to avoid variables. Performance is harmed by the serialization and deserialization of variables.

The patterns serve as a framework for developing, implementing, and integrating messaging and integration systems, as well as a common language for teams to use when developing solutions. Mule minimizes the time it takes to build integrations by using the patterns you use to create solutions.

When a Mule app is running, the Mule runtime engine, as well as the module and connector activities configured in the app, might throw errors, represented by Mule error objects and associated with Mule events. With On-Error components, you can handle error objects and track them down in the logs.

Mule errors are classified into error types, organized in a hierarchical sequence with a naming standard to help you identify the cause of the error and treat it at the appropriate level. Custom error types can also be created and mapped to these errors. The mappings might assist you in better distinguishing and grouping errors in your program.

Mule errors can be classified into two groups:

• System Errors: When a system error occurs and no Mule event is involved, Mule throws it.
• Messaging Errors: Whenever an issue arises in a Mule app's flow while Mule events and the messages they contain are being handled, Mule throws a messaging error (a Mule error).

It comes with a full set of integration and unit testing tools, as well as a Maven and Surefire interface for seamless integration with your continuous deployment infrastructure.

Since Mule 4.0, MUnit version 2.3 has been compatible with all Mule releases.

You can use MUnit to:

• Create your test using Mule code.
• Check processor calls for accuracy.
• Enable or disable tests.
• Produce coverage reports.

You can build API developer portals, test and view APIs, build assets, simulate data to APIs (Mocking Service), and use API Notebooks to describe and test API functionality using AnyPoint Exchange.

MuleSoft processes a message payload as a batch of records in a batch job, which is the scope element of an application. All three phases of processing are included in the phrase batch job: load and dispatch, process, and completion.

A Batch Aggregator populates a collection with data until it reaches the Nth record, where N equals the Batch Aggregator's size attribute. The payload of the Mule Message processed by the Batch Aggregator processors is then the collection that contains all records.

Batch processing is a method for automating and processing a large number of transactions at once. It is useful for processes such as payroll, month-end reconciliation, and overnight trade settlement.

AnyPoint Connectors are reusable Mule runtime engine (Mule) extensions that allow you to connect Mule apps to third-party APIs, databases, and standard integration protocols. The connector configuration can be changed without requiring other elements of the program to be updated.

An inbound endpoint component (from where the communication originates) and an outbound endpoint component are typically included in a flow. As a result, the flow is responsible for all of the message's processing phases.

You can create a connector using the AnyPoint Connector DevKit and the AnyPoint Studio IDE.

• Exception handling differs in a private flow. Although a subflow handles messages synchronously, the caller flow provides the processing strategy and exception handling.
• Sources can trigger flows. No event sources exist in subflows.
• Compared with subflows, referring flows perform worse.
• Error management can be customized for each flow. Error handling is absent in subflows.

CloudHub is a platform-as-a-service (PaaS) component of AnyPoint PlatformTM, a global, fully managed, multi-tenanted, secure, and highly available API and integration platform. You'll get regular software upgrades, and you won't have to worry about complicated hardware upkeep.

• On-premise
• Runtime Fabric (RTF)
• AnyPoint PCF (AnyPoint Platform for Pivotal Cloud Foundry)
• AnyPoint PCE (AnyPoint Private Cloud Edition)

Mule apps are managed and executed on your local servers with AnyPoint Platform Private Cloud Edition (AnyPoint Platform PCE). High availability and scalability are built into the AnyPoint Platform PCE thanks to Docker and Kubernetes. Without knowing Docker or Kubernetes, you can install the platform.

All the benefits of the cloud, such as high availability, rolling upgrades, automatic failover, etc., are supported by Runtime Fabric. Additionally, you can even deploy multiple versions of Mule runtime using Runtime Fabric.

Runtime Fabric Architecture is a set of VMs that work together to form a cluster. And each VM serves in either “worker” or “controller” mode in the cluster. The controller node manages load balancing, a distributed database, and an orchestration service. Worker nodes manage Mule applications and API gateways.

MuleSoft application deployment and undeployment are managed by the Mule Maven Plugin. You can use the Enterprise Mule Runtime engine and the Community Mule Kernel. You can automatically deploy applications to the cloud, on-premises, and AnyPoint Runtime Fabric Manager.

Mule Maven Plugin supports the following tasks:

Package: It is used to execute a file or generate a JAR for a Mule application.

mvn package

Deploy: It is used to upload, deploy, and run the application on the target system.

mvn deploy -DmuleDeploy

Undeploy: It is used to delete applications from the target system.

mvn mule:undeploy

MuleSoft Watermarking is a technique used for duplicating processes while synchronizing data. Watermarking is the most common use of the object store.

Schedulers use the same time as the machine on which Mule is operating. MuleSoft schedulers use the configured timezone unless anything is specified.

It permits role-based access control, connectors, and client management by integrating with the AnyPoint Platform. With AnyPoint MQ Connector, you can connect Mule Apps to AnyPoint MQ. You can post and receive messages, acknowledge, and delete messages from queues and exchanges.

You can connect an AnyPoint VPC (Virtual Private Cloud) to a private network using the following methods:

• Transit gateway attachment
• AWS Direct Connect
• IPsec tunnel

You can do the following using dedicated load balancers:

• Handle load balancing between the CloudHub workers that operate your project.
• Create SSL setups to give bespoke certificates and enforce two-way SSL client authentication if desired.
• Set up proxy rules to link your applications to specific domains.
• This allows you to host all of your apps on a single domain.

A dedicated load balancer for your AnyPoint VPC can be created and configured in three ways:

• The AnyPoint Platform's Runtime Manager
• Using the AnyPoint Platform CLI's cloudhub load-balancer build command
• These endpoints allow you to access the CloudHub REST API:

API Gateway and AnyPoint Service Mesh, both of which enforce policies, collect and track data for analytics, handle proxies, offer encryption and authentication, and manage applications, are used in the runtime.

While API gateways and API management are often used interchangeably, API management refers to the overall solution for managing APIs in production, which may include a cluster of API gateways, an administrative UI, and even add items like a developer portal for customers to sign up and generate new API keys.

API policies, such as Rate Limiting and Throttling, are available in MuleSoft, and you may use API Manager to implement them.

• Rate Limiting: This policy limits the number of requests an API can handle within a specified period. The API will reject requests that exceed the limit.
• Throttling: The Throttling policy queues requests that exceed their limits for later processing. If the processing fails after a specific number of attempts, the API will eventually refuse the request. You can set a retry delay and a retry limit.

AnyPoint Design Center gives you the tools you need to create connectors, implement data and application flows, and make API design, reuse, and testing much easier.

DataWeave is MuleSoft's main data transformation language and the expression language for configuring components and connectors. DataWeave, on the other hand, can be used in different ways, such as a command-line tool.

You can access the secure property defined as part of the secure property file in the Mule application by using p('secure::property name>').

To call a flow from inside a DataWeave, you can use the DataWeave lookup function. It's compatible with Mule programs that run on Mule Runtime 4.1.4 or later. It accepts two parameters: the flow name and the input payload. For example, Lookup("flow name", payload).

A Batch Aggregator populates a collection with data until it reaches the Nth record, where N equals the Batch Aggregator's size attribute. The payload of the Mule Message processed by the Batch Aggregator processors is then the collection that contains all records.

Distributed file polling is used in Mule 4 to poll files across cluster nodes.

This feature is enabled by default in only a few connectors.

• File Connector
• FTP Connector
• SFTP Connector

Connectors can be configured to poll exclusively from the primary node @primaryNode only, overriding the Mule runtime engine's default setting.

Identity management is required to protect digital assets from misuse and theft. Single Sign On (SSO) is one of the identity management methods.

The SSO Standard is listed below.

• OpenID Connect
• Open AM
• OKTA
• PingFederate
• SAML 2.0
• Salesforce

The OAuth2 provider module allows a Mule Application to be configured as an Authentication Manager (OAuth provider). During the execution of a flow, the application can authenticate registered clients, issue tokens, validate tokens, and register or delete clients with this role.

• AUTHORIZATION_CODE
• RESOURCE_OWNER_PASSWORD_CREDENTIALS
• CLIENT_CREDENTIALS
• IMPLICIT

By adding the CloudHub Network Administrator permission to the profile of the organization where you're creating the load balancer, your profile is authorized to conduct this activity.

In the organization where you wish to establish a load balancer, create an AnyPoint Virtual Private Cloud (AnyPoint VPC). Make at least one certificate and a private key for it.

MuleSoft hosts an EU-only version of the AnyPoint Platform control plane (Frankfurt or Dublin data centers). It allows you to install and manage your APIs, apps, and data exclusively within the European Union.

It also covers MuleSoft-related data and metadata. The EU control plane ensures that all MuleSoft data is stored in the EU.

AnyPoint runtime plane deploys the Mule runtime application and runs the Mule runtime engine; in the case of CloudHub, MuleSoft will maintain the runtime plane, while the customer will control on-premise and RTF runtime planes.

The following approaches can help you with the same.

• Update  runtime manager properties - CloudHub and CloudHub 2.0
• Use secure configuration properties
• Update the external file and restart the Mule runtime if the configuration is stored outside the application package.
• Use the Secrets Manager to rotate passwords if the application retrieves credentials from a secret management service.

Identification of the cause:

• Checking the runtime manager monitoring dashboards to examine the issue.
• Analyzing the application logs for long-running requests, large payload processing, and so on
• Looking for common MuleSoft issues, including infinite loops and excessive caching
• Capturing a heap dump if memory keeps increasing.
• Verifying garbage collection.

Troubleshooting:

• Enable streaming if the issue occurred because of large payloads
• Process data in small batches if the issue is due to batch processing
• Remove retained references and fix application logic if the issue occurred because of a memory leak
• Close DB/HTTP connections properly if a connection leak caused the issue.

Project applications need to be analyzed very carefully to avoid unnecessary arrangements. ESB benefits projects by enabling them to operate within a large, multifunctional application support environment.

The analysis depends on many factors, such as:

• If the project requires a set of actions involving additional applications and servers, with interaction among two or more complex resources.
• If the project needs a broad scale-up in the future, it requires multiple applications to communicate over a single setup.
• If the project requires routing messages between endpoints, such as forking and aggregating routed messages.
• If the project can accommodate this huge investment, it needs application support.

We can create a flow that runs in a single thread. There is an option to set Max Concurrency to 1, which processes only one message at a time.

The following is an example:

%dw 2.0
Import java ! com.
mycompany::classname
output application/json
---
{
a: classname::methodName("myString")
}

We can use the log("Current Timestamp", now()) function in DataWeave.

We can use the ++ operator to concatenate arrays.

MuleSoft is an enterprise integration platform developed by Salesforce that helps organizations connect applications, databases, cloud services, legacy systems, and devices through APIs.

It is built around the Anypoint Platform, which provides tools to design, build, manage, secure, and monitor APIs and integration flows.

Why do organizations use MuleSoft?

• Connect cloud and on-premise applications.
• Expose existing systems as reusable APIs.
• Reduce point-to-point integrations.
• Accelerate digital transformation projects.
• Improve security and governance across integrations.
• Enable faster application development through reusable APIs.

Key Components

• Anypoint Studio
• Runtime Engine (Mule Runtime)
• API Manager
• Exchange
• Runtime Manager
• CloudHub

Real-world Example

An e-commerce company may need to connect its website, ERP system, CRM, payment gateway, shipping provider, and inventory management system. MuleSoft acts as the integration layer, allowing these systems to communicate through standardized APIs instead of building multiple direct integrations.

Benefits

• Reusable APIs
• Faster development
• Better scalability
• Improved security
• Centralized monitoring
• Lower maintenance costs

Because of these advantages, MuleSoft is widely adopted by large enterprises in banking, healthcare, retail, insurance, manufacturing, and telecommunications.

Asked by: TCS, Infosys, Cognizant
