LabVIEW Graphs and Charts

In today’s world, graphs and charts are one of the most essential tools to represent data, and they are making trends in different aspects. They are widely used in various sectors to convey information visually and to make sense of data.

A chart is a graphical representation of data in symbols whereas graphs portray the relationship between different data in less space.



Graphs and chart techniques are evolving with technological innovations. LabVIEW is a software development platform developed by National Instruments. LabVIEW is specially designed for scientists and engineers who need to program for graph and chart.

[Related Article:-Customizing Graphs In Labview]

The main objective of this article is to present the concepts of graphs and charts in the LabVIEW environment. The graphs and charts appear in the LabVIEW environment as shown in the below image.


graphs and chart


LabVIEW Programs Including Graphs and Charts

First of all, you have to understand the basic concepts of LabVIEW programming. Learn the fundamental steps to start programming LabVIEW interactive environment. Here is the best example to create a graph and chart program in LabVIEW.

Step 1: Launch LabVIEW platform. Open-File Menu and click on the ‘New’ option to build a new Virtual Instrument (VI). A VI has two windows; window comprising the front panel view with inputs and outputs and block diagram which contains the code.

For example, create a program for changing the temperature from Fahrenheit to Celsius and display them as a graph in LabVIEW.

Step 2: Right-click on the front panel - Navigate to Control Palette – Select Numeric type – Click on Vertical Slide Bar as shown in the image.


control palette


Step 3: Use the formula Tc=5/9(Tf-32) to convert temperature from Fahrenheit to Celsius Scale. This formula includes various operations in it.

So, connect the output of Temperature slider to the upper input of the subtraction block which is present in the function palette in the numeric section and set value 32 to another side of subtraction block.

Step 4: In the same section, select the division block and set numeric constant value 5 at the upper end whereas value 9 at the lower input.

Step 5: In multiplier block, connect the output from subtraction block and division block as shown in the below image. The multiply block gives the output of temperature value in Celsius.


substraction block


Step 6: Right-click on Front Panel – Select numeric from the control palette – Click on Thermometer. Connect thermometer with the output of the multiply block and name them.






Step 7: Attach a numeric indicator at the temperature at both input temperature and temperature block.

Step 8: You can change the scale of fill as follows: Select scale of fill – Right Click on Vertical Slide fill – Select Properties – Select Scale – Set Maximum value as per your need.

Step 9: Click on the Run button or Press (Ctrl+R) to run the program. Now, you have created only the bar graphs.


bar graph


Step 10: Navigate to charts and graph section in LabVIEW. Select graphs from the control palette and choose Waveform Charts. Join the block diagram of the process with the result of the multiply block. Run the VI continuously and change the value of temperature in the Slide fill to see the change in variation of data in the chart as shown below.


waveform charts



wavefrom chart 2


Step 11: Move to the graph section and set the data of any type about a period of time to see the graph. Make use of ‘for’ loop to iterate the value and insert the wait block in it. Connect a wire from output of the multiply block to the edge of ‘for’ loop. In the control palette portion, select waveform graphs as displayed in the below image.


control palette portion


Step 12: Join the block of graphs to the edge of the loop as shown in the image. Then run the program as said above where you can see the variation in the chart and but nothing in graphs. When you stop the program of iteration gets completed you can view the data variations in the graph.

data variation


data variation with tempreature


MindMajix LabView Tutorial course is designed to helps to automate testing and also with data gathering. Start Learning!


3D Graphs and Its Property


The LabVIEW environment enables the users to create graphs in 3D (Three Dimensional View) to represent the data visually. The professionals have to visualize data sets in three dimensions in real-time such as a motion of an airplane, time-frequency analysis, and temperature distribution on a surface and so on.

MindMajix Youtube Channel


Learn and Enhance your Skill with LabView Training join Now!


The 3D graphs in LabVIEW are easy to use and customize based on the user requirements. Below image is an example of a 3D curve graph. The major properties of 3D graphs are

  • Axis: Active Axis
  • Axis: Marker Color
  • Axis: Range
  • Axis: Grid
  • Axis: General
  • Cursor: Text
  • Graph: User Defined View


3d curve


Types of 3D Graph

LabVIEW interactive environment offers different types of 3D graphs to represent the data in three dimensions, they are

Scatter – It is a kind of graph which includes two axes, each representing a set of data.


scatter graph


Stem – Plots the data Y as stems and it generated the x-axis automatically.




Comet – A circle traces the data point on the display in which the trailing segment follows the head.




Surface – Show points using color, shading and multiple dimensions.






Contour – Used to analyze three variables in the two-dimensional format.





Mesh – Collection of vertices, edges, and faces to defines the shape of an object




Waterfall – Communicates the changes that occurred in the data in step by step manner




Quiver – Displays vectors with components (u,v,w) at the points (x,y,z)




Ribbon – Appears to be coiled ribbons formed with smooth curves




Bar – Used to visualize the data that contain different proportion in a single view.




Pie – Simple and efficient tool for comparing various data




3D surface graph – Used to draw a surface in 3D space



3d surface graph


3D parametric surface graph – Used to draw a parametric surface in 3D space


3d parametric


3D curve graph – Used to draw lines in 3D space.

Blog post image[Related Article:-LabView Basics]

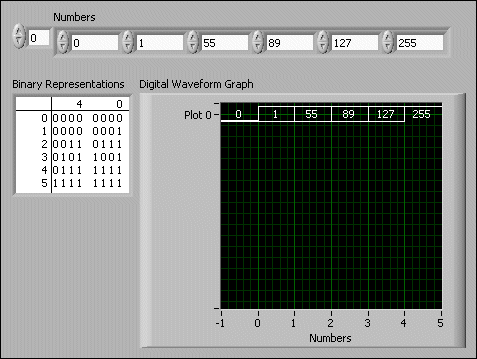

Blog post imageDifference between Waveform Graphs and Waveform Charts

Waveform GraphsWaveform Charts
  • The waveform graph shows one or more plots of even measurements.
  • It plots only single-valued function with points that are evenly distributed along the x-axis.
  • Waveform graphs are good at outside of the Loop.
  • The chart displays one or more plots of data that contains a constant value.
  • It displays the plot that includes any number of points in it.
  • Waveform charts are good to use inside the loop.

Type of Charts available in LabVIEW


The different types of charts that are available in LabVIEW software are

Waveforms Charts

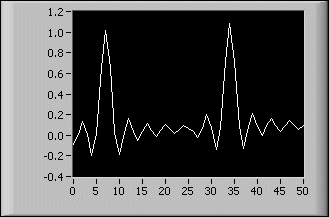

The waveform charts in LabVIEW allows the user to display plots of the data in graphical form. Charts are useful for plotting the data interactively, appending new data to old in such a way to differentiate the current value with the previous data. The Waveform charts are capable of displaying one or more plots of data of constant rate.




Single Plot on Waveform Charts in LabVIEW

If you produce the waveform chart with a single value simultaneously, the LabVIEW shows the data as points on the chart and increment the value. This chart is capable of accepting the waveform data type which transmits the data. You can make use of the analog function to outline time on the x-axis of the chart and provide the right interval between markers.

Multiple Plots on Waveform Charts in LabVIEW

In order to pass data for various plots to a chart, you can bind the data collectively into a bunch of numeric values. If you are in a need to pass multiple points in a single update connect an array of clusters of numeric to the chart. Here each numeric shows the single y value for every plot. You can give multiple points for multiple plots in a single process with the help of wiring a 2D array of numeric to the chart.

Intensity Charts

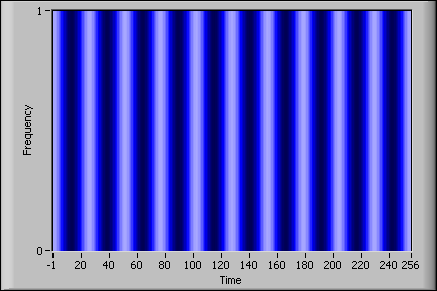

Intensity charts are a kind of waveform chart in which the Cartesian plane shifts to the right of the last block when you plot a block of data in it. You can able to see the new value of data on the right side of the old values. Like the waveform chart, this chart also maintains the history of data from the past updates.


intensity charts


Modes of Charts

Strip chart

It is a default mode which displays data scrolling from left to right continuously. Here the old data is shown on the left and new one on the right side.

Scope chart

This mode of the chart is similar to the function of the oscilloscope in which the sport runs from the left side of the window to right. The image gets cleared and the spot appears on the left when it reaches the right end.

Sweep chart

In sweep chart mode the data is overwritten as you see in the ECG image. New data appears on the left which is separated from the right by a red vertical line.


sweep chart


Thus, these are the essential concepts that you need to know in the Graphs and Charts of LabVIEW. Make use of this tutorial to create effective programs for your data and represent them in a visual manner.
